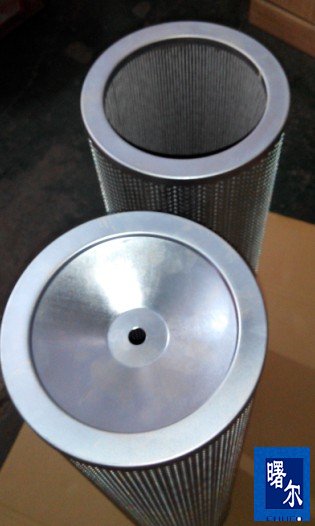

R928045223力士樂Rexroth濾芯
A.安裝
1. Standard mounting.
1。標準安裝。
a. Cut proper size hole in the top of the reservoir.
A.切適當大小的洞，儲層的頂部。
b. Drill holes for studs within the proper bolt circle.
B.鉆孔釘在適當?shù)?/span>螺栓圓周。
c. Set the fi lter into the cutout hole and secure with
C.設置濾波器為切口孔和安全
proper size bolts, nuts and lock washers.
適當?shù)?/span>尺寸的螺栓，螺母和墊圈。
d. Torque nuts in accordance with drawing.
D.扭矩螺母按圖。
2. Mounting procedure using weld plate.
2。安裝采用焊接板程序。
a. Rough cut proper size hole in the top of reservoir.
A.粗切適當大小的孔在油層頂部。
b. Weld the weld plate concentric to the rough cut
B.焊接的焊接板粗同心
hole.
孔。
c. Mount the fi lter onto the studs and secure with
C.安裝濾波器上的螺柱和安全
nuts and lock washers.
螺母和鎖緊墊圈。
d. Torque nuts in accordance with drawing.
D.扭矩螺母按圖。
3. Utilize proper fi ttings.
3。利用適當?shù)?/span>音響裝置。
B. Start-Up
B.啟動
1. Check for and eliminate leaks upon system start-up.
1。檢查并消除泄漏在系統啟動。
2. Check differential pressure indicator, if installed, to
2。如果安裝止回閥的壓差指示器，，以
monitor element condition.
監控單元的條件。
C. Service
C.服務
1. An element must be serviced when the indicator
1。一個元素必須維修時指示
indicates service is required.
指示服務是必需的。
NOTE: If the fi lter is not equipped with an indicator,
注意：如果濾波器是沒有配備指示器，
the element should be serviced according to machine
該元件應該服務根據機
manufacturer’s instructions.
制造商的說明。
|
R928045211力士樂濾芯 |
|
R928045213 |
|
R928045214 |
|
R928045215 |
|
R928045217 |
|
R928045218 |
|
R928045220 |
|
R928045221 |
力士樂濾芯力士樂濾芯力士樂濾芯
